Product Introduction

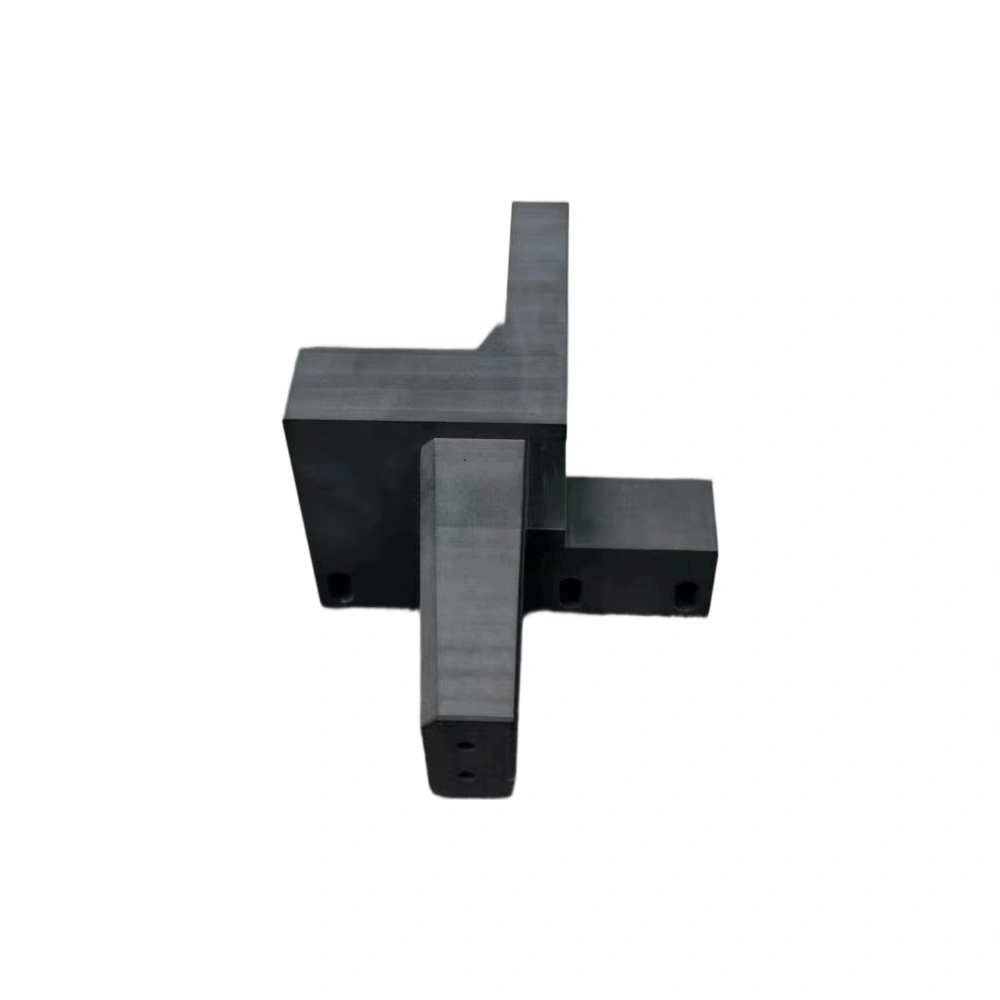

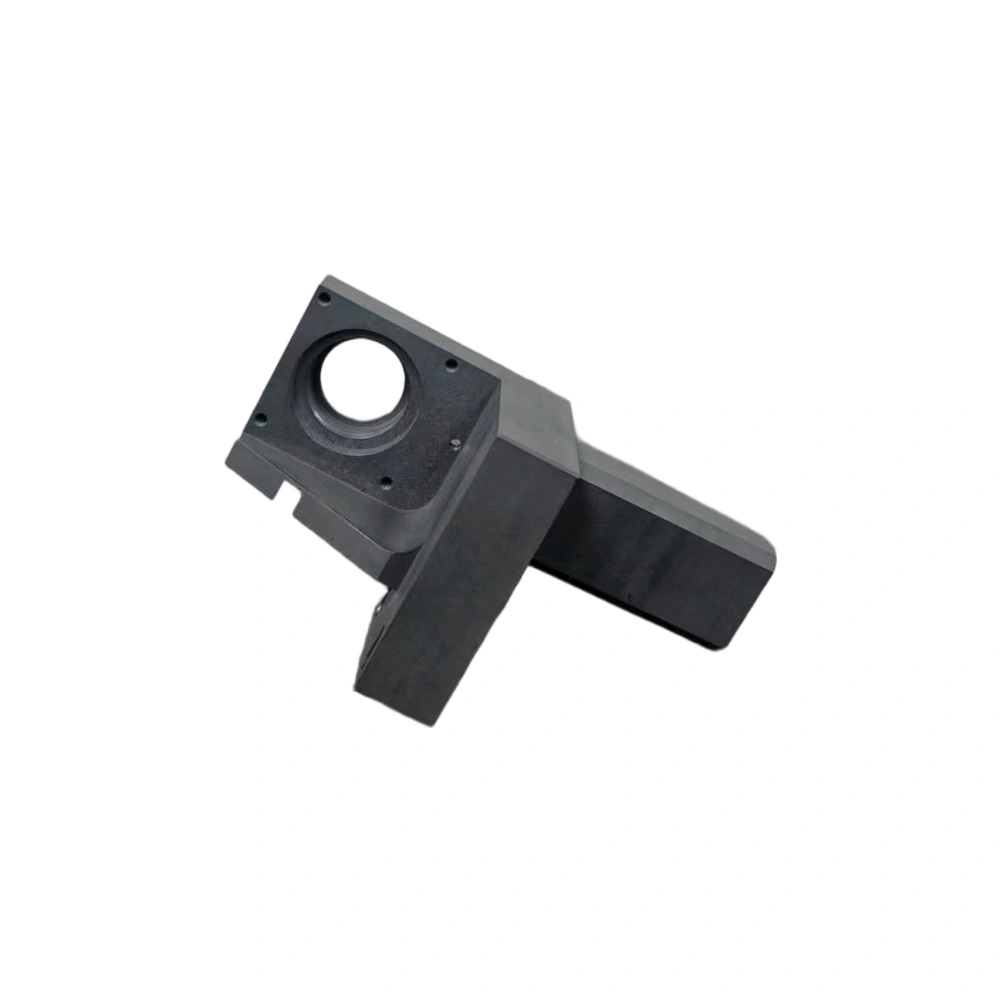

This high‑precision CNC‑machined aluminum base is designed as a right‑side mounting support for Z‑axis motion assemblies in industrial printing equipment. Fabricated from AL6061 aluminum alloy, it balances light weight, structural rigidity and excellent machinability. Strict geometric tolerances are applied to key mating surfaces to secure stable positioning and repeatable motion performance. Black anodizing surface treatment delivers improved wear resistance and anti‑corrosion properties. We offer custom CNC manufacturing from prototype validation to full‑scale mass production according to customer drawings or 3D files.

Product Information

Materials:
AL6061
Main process:
5-Axis Milling
Surface treatment:
Black Anodizing
Packaging method:
Standard pearl cotton with plastic film packaging
facebook
line
Whatsapp
Pinterest
Tumblr
Linkedin

Specifications

  • Part Name: Z‑Axis Integrated Base
  • Material: AL6061 Aluminum Alloy
  • Surface Finish: Black Anodizing
  • Key GD&T: Flatness, Parallelism, Perpendicularity, Profile of Surface down to 0.005 mm
  • Locating Feature: Φ5 H7 precision pin holes; oval adjustment slots for assembly fine‑tuning
  • Thread Features: Multiple M3‑6H internal threads with counter‑bore holes
  • General Tolerance: ±0.1 mm for non‑specified dimensions; unmarked features follow 3D model
  • Edge Treatment: C0.5 chamfer for all sharp edges, burr‑free & scratch‑free surface

Our Manufacturing Capabilities

Our in‑house CNC workshop handles one‑off prototypes, small‑batch trials and large‑volume serial production. Every part goes through in‑process dimensional inspection and final quality check to ensure full compliance with drawing requirements. Custom modifications for dimensions, materials, surface treatments and marking are all acceptable based on your technical documents.

Application Scenarios

Custom precision structural base for industrial screen‑printing machinery. Used to mount Z‑axis modules, linear guides and sensing components. Precision pin holes guarantee assembly accuracy; slotted holes allow on‑site position adjustment during equipment assembling.
